Hit

Semi-Mounted (Trailed)

Working Widths from 8.86m

Download Brochure Enquire Now

Product Enquiry: Hit

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • Outer rotors hydraulically raised and Fold Inwards
  • Heavy Duty Tine security system
  • Asymmetric Tines
  • Overload protection Clutch
  • Dual shock absorber struts on both sides (Mounted Models)
  • Tine arm support discs ensures tine arms cannot twist
  • High quality powder coated paint finish
  • Optional ELECTRO-HYDRAULIC CONTROL (Std on HIT 910 AZ)

Specifications

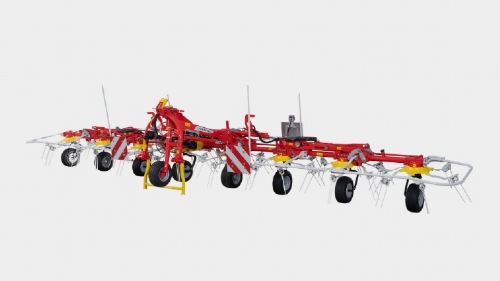

HIT 8.91 T
Width 8.86 m
Working width DIN 8.60 m
Rotors 8
Rotor diameter 1.42 m
Tine arms per rotor 6
Transport width 3.0 m
Parking height 3.26 m
Hydraulic connections 1 D
Weight 1510 kg
