TOP

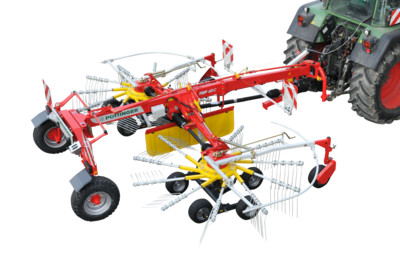

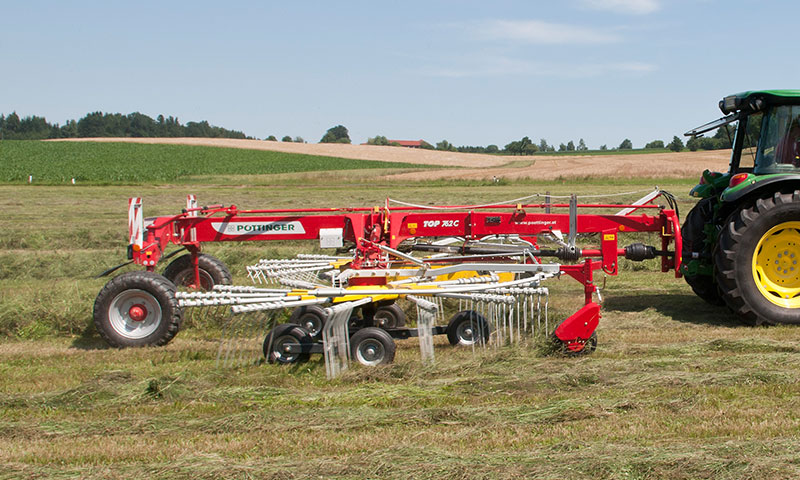

Twin Rotor Centre Swather Rakes

612C, 702C, 762C, 842C, 962C

Working Widths from 5.9m - 9.6m

Download Brochure Enquire Now

Product Enquiry: TOP

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

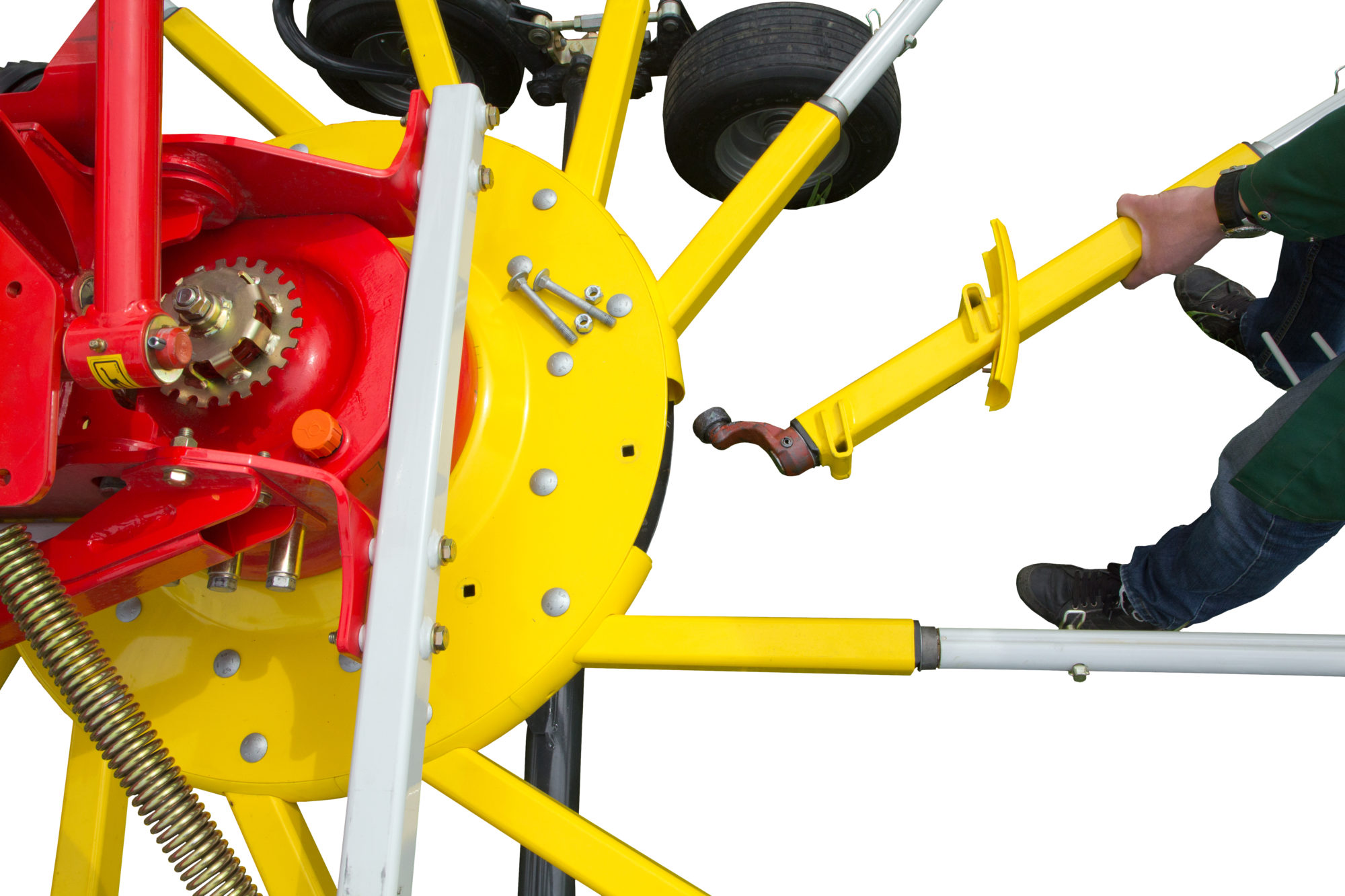

  • NEW! TOPTECH PLUS Rotors – 3 bolt removal of tine arms
  • Flow Divider for parallel Lifting of Rotors (Single lifting option available)
  • Variable Working Widths (612C Fixed) (702C / 762C / 842C & 962C  Hydraulic Width Adjustable)
  • Large Long life adjustable cam track with hardened steel cam rollers running in grease for easy maintenance (No oil)
  • Huge cam track and rotor bearing arm support for lower tine and bearing stress
  • NEW! 5 Wheel rotor bogie axle (NZ Std spec)
  • Wide Angle PTO with C.V c/w Overload Clutch

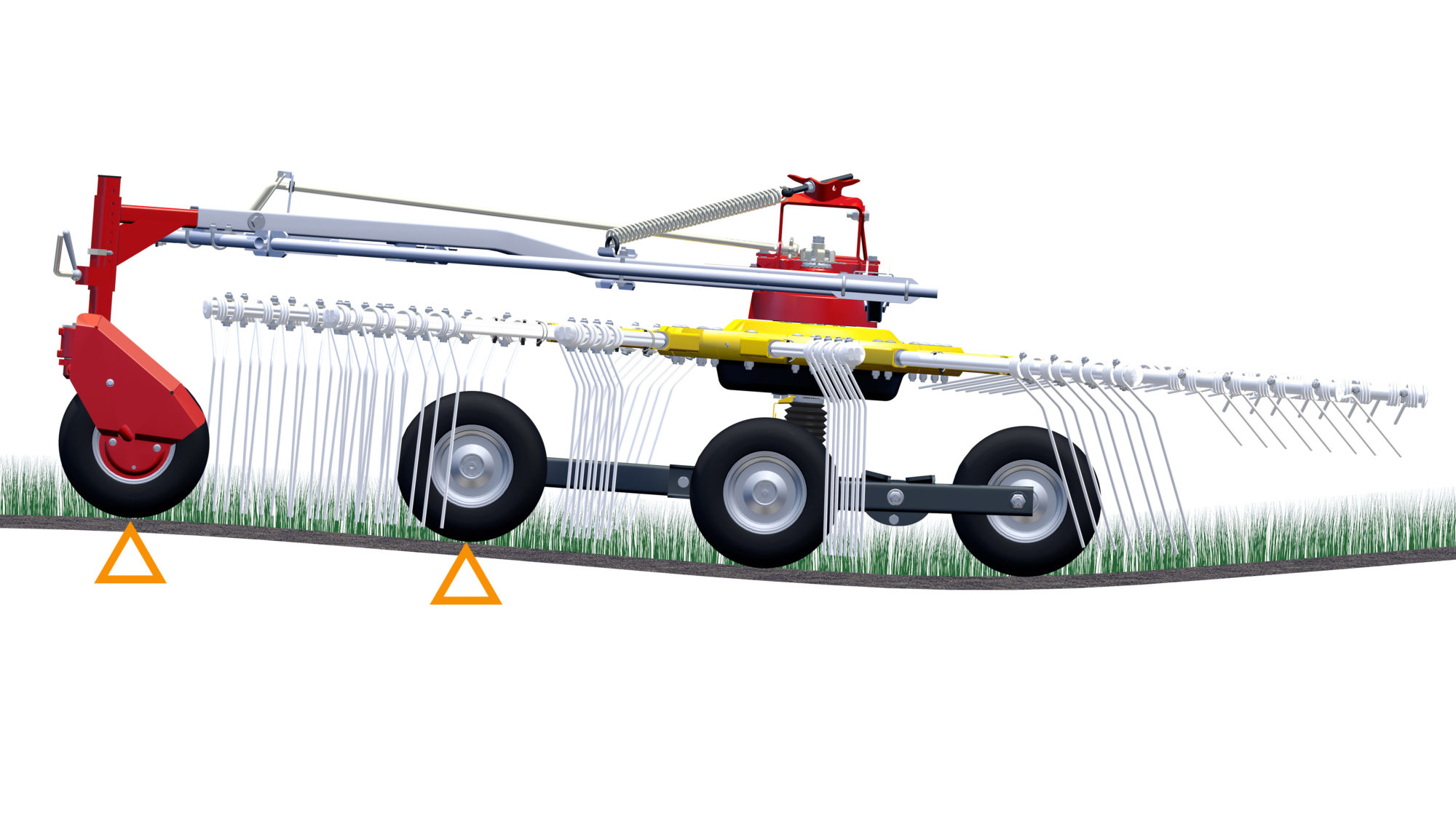

  • Optional: “MULTITAST” front jockey wheels for superior contour following
  • Tangential Control of Tine arms, Closed zero maintenance rotor
  • High quality powder coated paint finish
  • Rear Wheel Steering

Specifications

MODEL WORKING WIDTH (M) No. ARMS SWATH WIDTH (M)
Top 612C 5.9 10+10 1.0m  (Fixed)
Top 702C 6.45 -7.0 11+11 1.0 – 1.7m (Hydraulic)
Top 762C 6.9 – 7.6 13+13 1.0 – 1.7m (Hydraulic)
Top 842C 7.7 – 8.4 13+13 1.3 – 2.2m (Hydraulic)
Top 962C 8.9 – 9.6 15+15  1.3 – 2.2m (Hydraulic)
