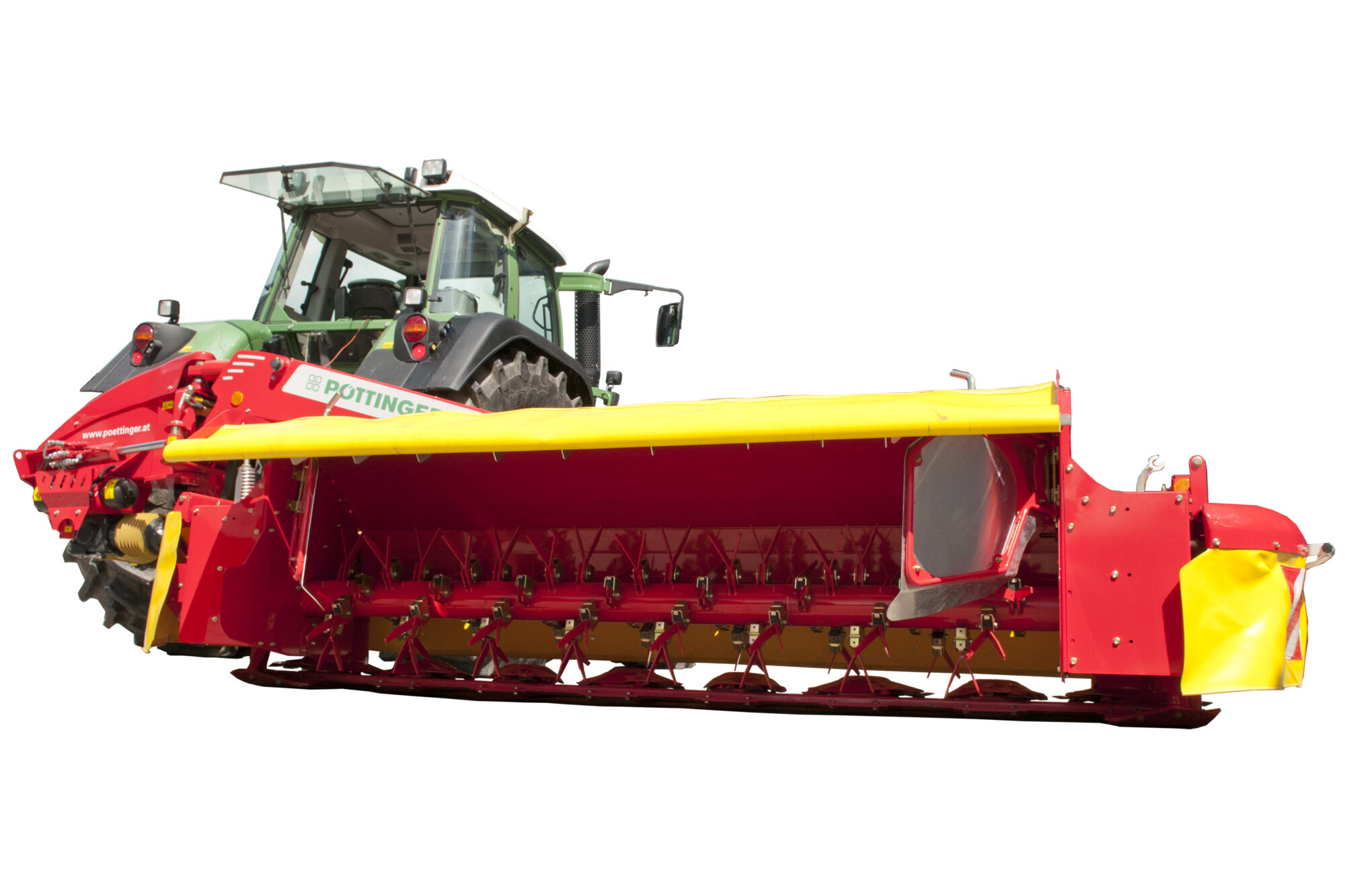

NovaCat

Rear Mounted Disc Mowers and Conditioners

Cutting Widths from 2.62m - 4.3m

Download Brochure Enquire Now

Product Enquiry: NovaCat

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

Gear drive – Centre pivot – Hydraulic suspension

  • All shaft and gearbox driven – transmission – no inner skid – no blockages
  • Pendulum Hydraulic centre mounted cutter bar – for optimum flotation
  • Mechanical breakaway safety device
  • Hydraulic suspension – Fully adjustable from the tractor seat!
  • Adjustable L/H lower link – for easy attachment/detachment (Hyd optional)

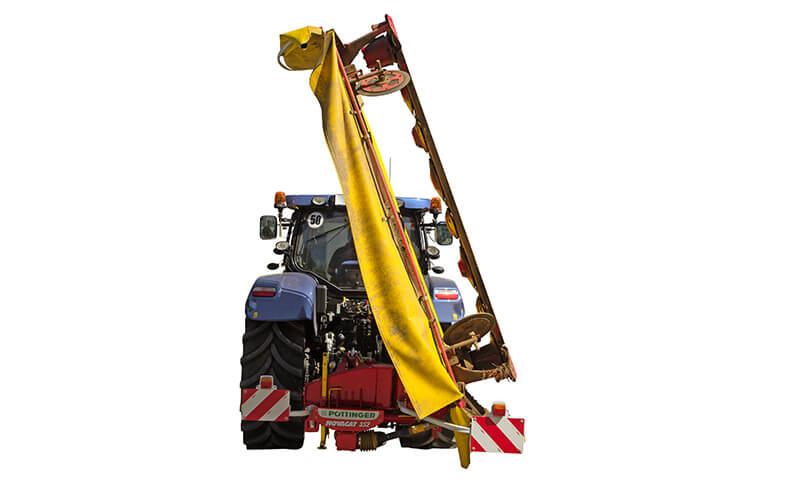

  • Hydraulic VERTICAL FOLDING transport position

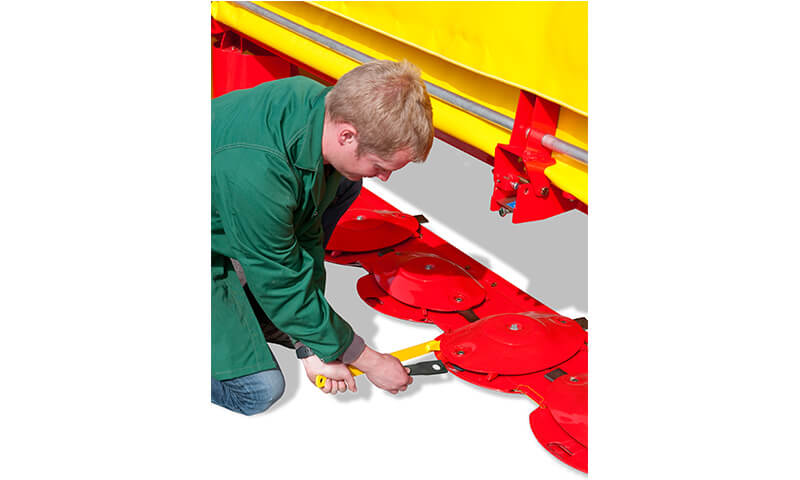

  • Quick change blades
  • Fully welded cutter bar – Extremely strong – made from Swedish steel
  • Large sized cutter bar gears – results in more gear teeth in contact
  • Disc’s with double race high speed ball bearings – long life
  • Optional crop deflector disc’s
  • 6 Spline P.T.O – 1000RPM

Specifications

MODEL CUTTING WIDTH (M) NO. DISCS TYPE
Novacat 262 2.62 6 Disc Mower Only

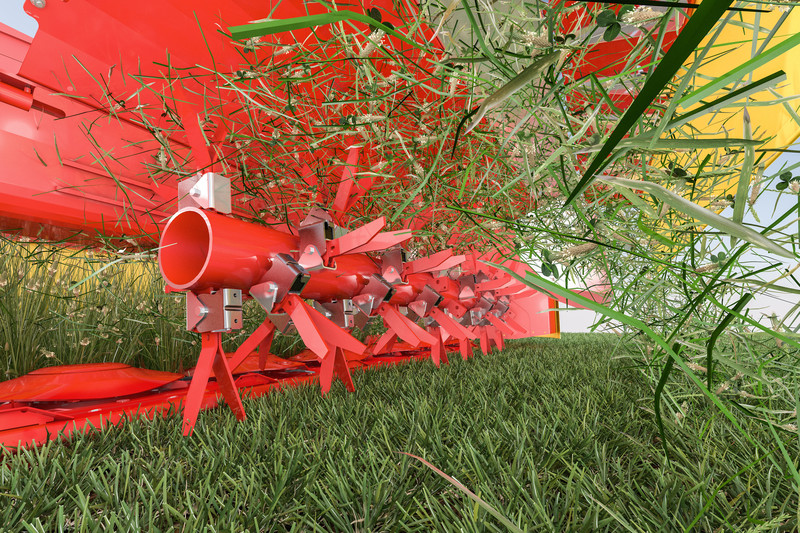

Novacat 262 ED 2.62 6 ED Finger Condition

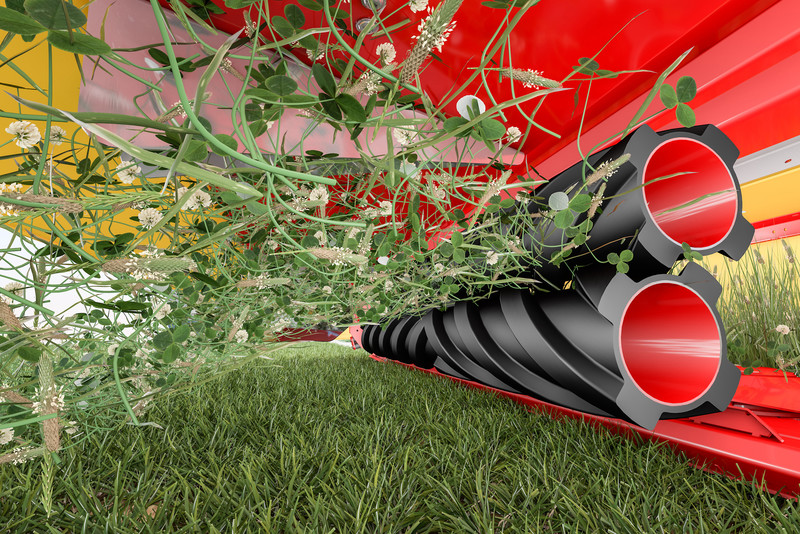

Novacat 262 RC 2.62 6 RC Roller Conditioner

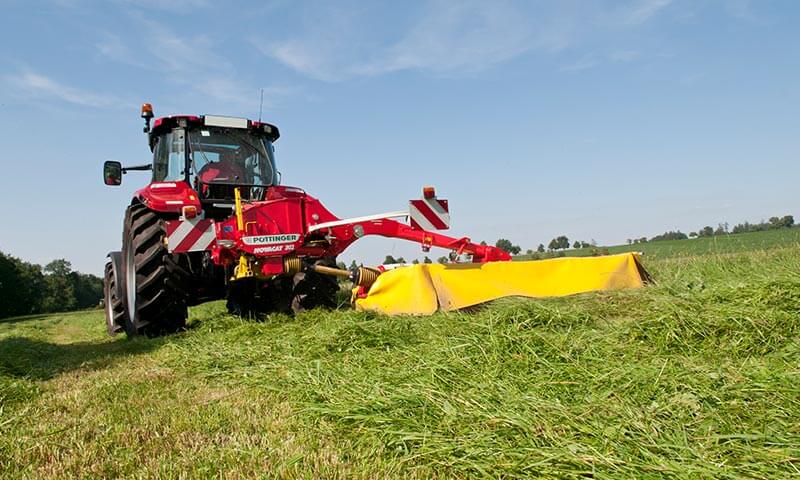

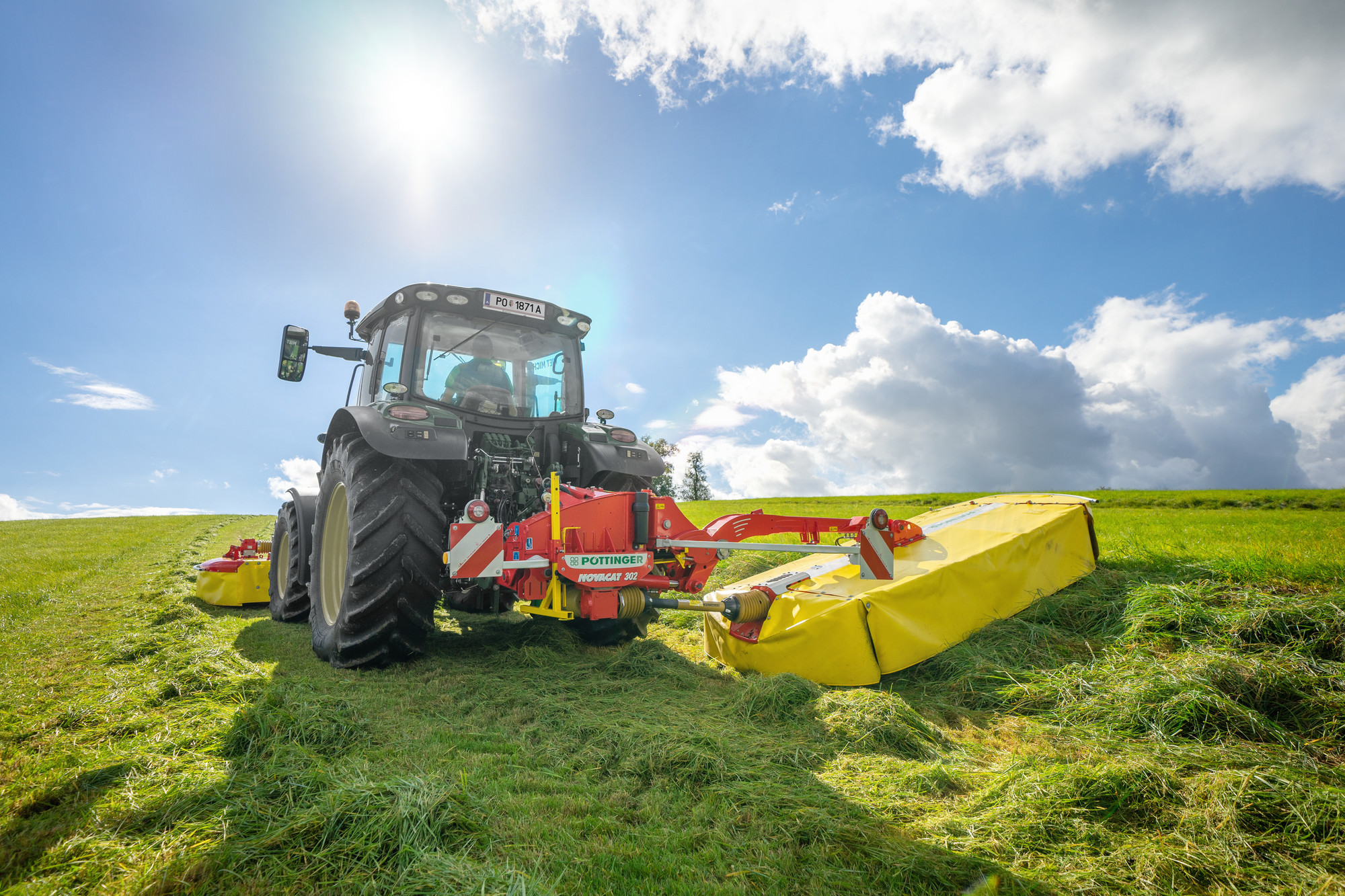

Novacat 302 3.04 7 Disc Mower Only
Novacat 302 ED 3.04 7 ED Finger Conditioner
Novacat 302 RC 3.04 7 RC Roller Conditioner
Novacat 352 3.46 8 Disc Mower Conditioner
Novacat 352 ED 3.46 8 ED Finger Conditioner
Novacat 352 V 3.46 8 Disc Mower – Vertical Folding

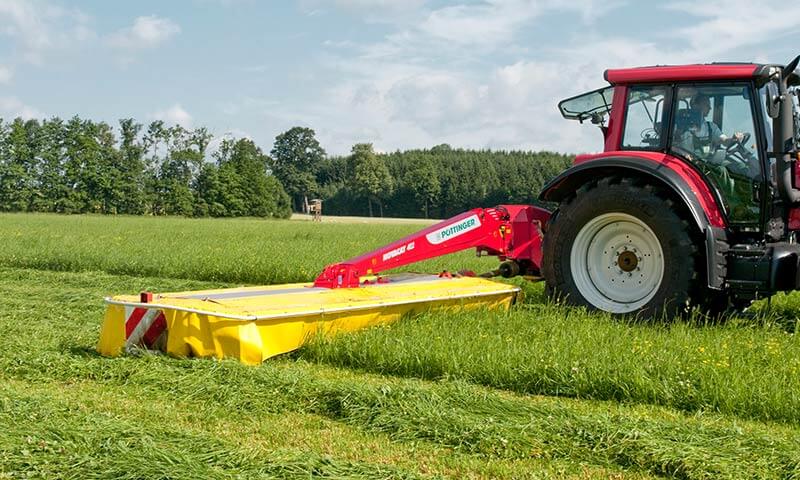

Novacat 402 3.88 9 Disc Mower Only
Novacat 442 4.30 10 Disc Mower Only
