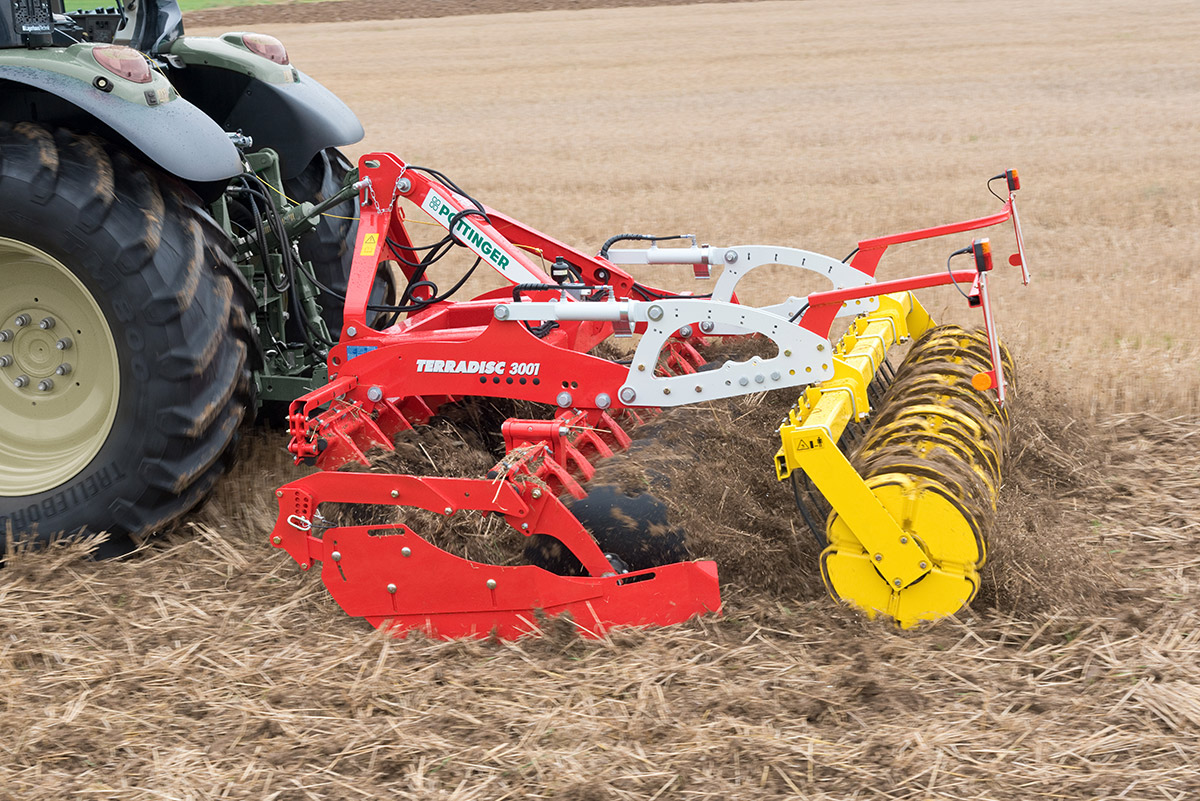

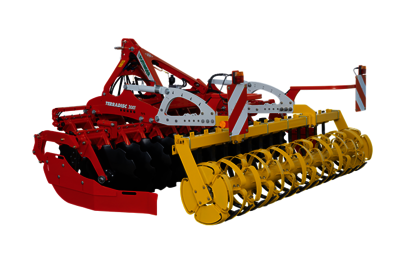

Terradisc

Mounted Compact Disc Harrow

Working Widths from 3m - 6m

Download Brochure Enquire Now

Product Enquiry: Terradisc

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • Suited to Vineyards and cropping applications

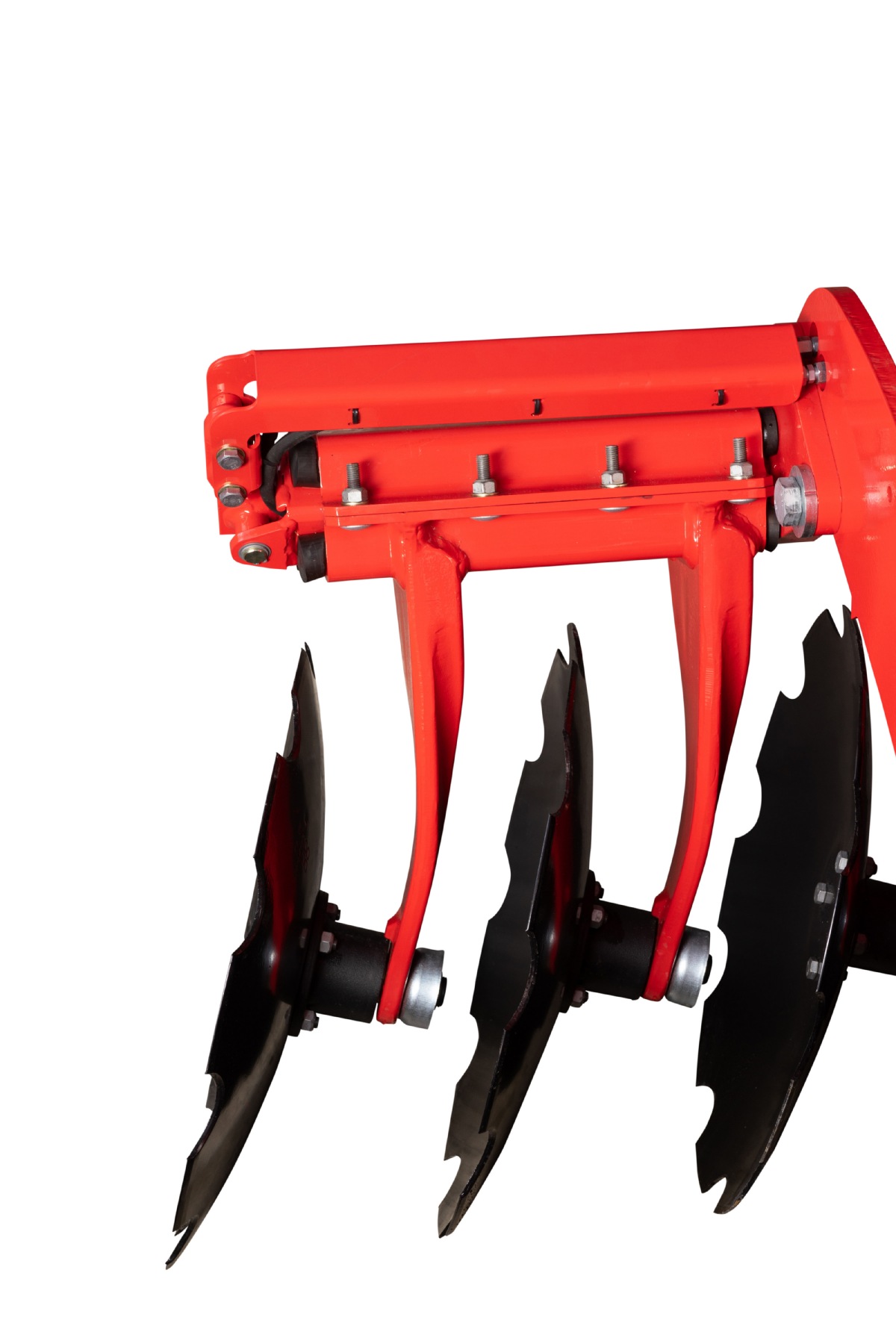

  • Large Scalloped 510mm Disc’s mounted on two tool bars
  • Manufactured from Quality Fine Grade steel
  • Rubber Disc mounted suspension – for ground adaption longer bearing life
  • Option of different Rear rollers for differing soil and moisture conditions
  • Mechanical Disc Gang Position adjustment
  • Large twin Race Sealed angular Bearings with 6-Fold Labyrinth seal
  • Heavy Duty Frame for optimum weight to ensure good Disc penetration

MUST ADD REAR ROLLER TO 3000 and 4000 MODELS

Specifications

Model Working Width Min HP Frame Type
TERRADISC 3001 3.0m 95HP Mounted (2pt)
TERRADISC 3501 3.5m 115HP Mounted (2pt)
TERRADISC 4001 4.0m 135HP Mounted (2pt)

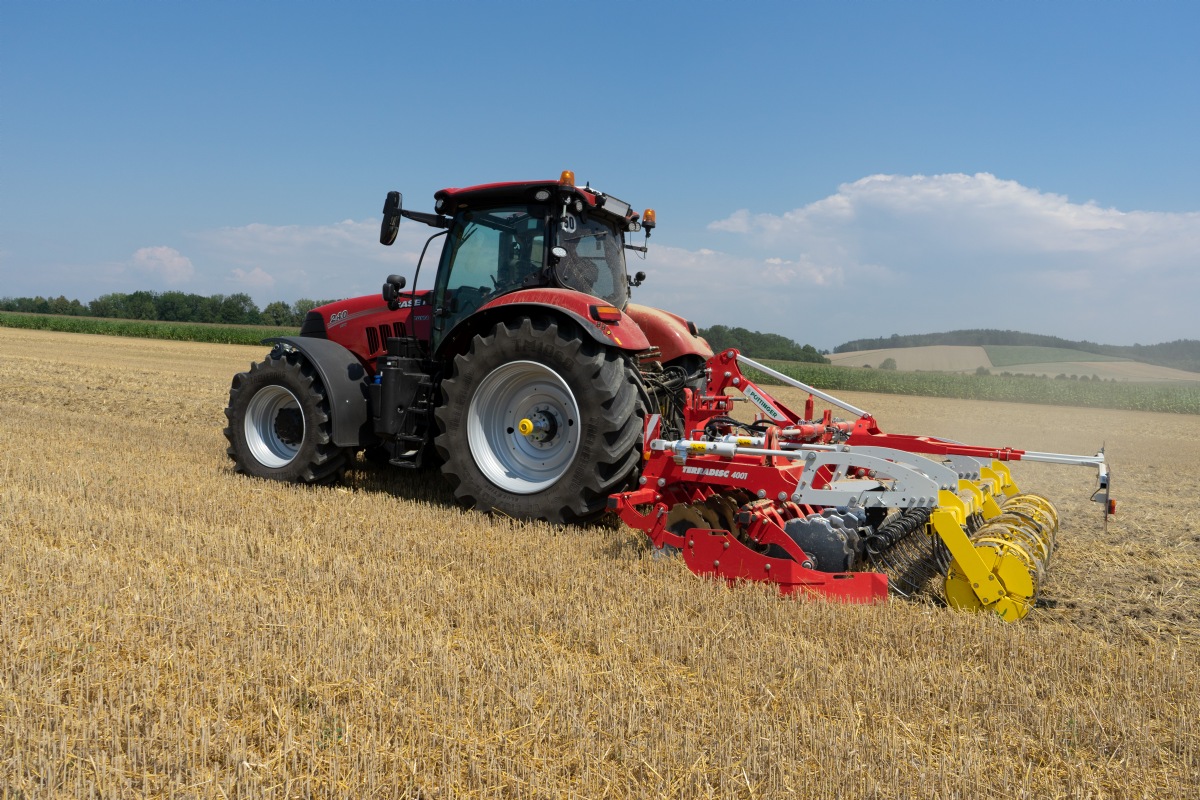

TERRADISC 4001K 4.0m 135HP Mounted (2pt)
TERRADISC 4001T 4.0m 135HP Trailed (3pt)
TERRADISC 5001K 5.0m 170HP Mounted (3pt)
TERRADISC 5001T 5.0m 155HP Trailed (3pt)
TERRADISC 6001K 6.0m 190HP Mounted (3pt)

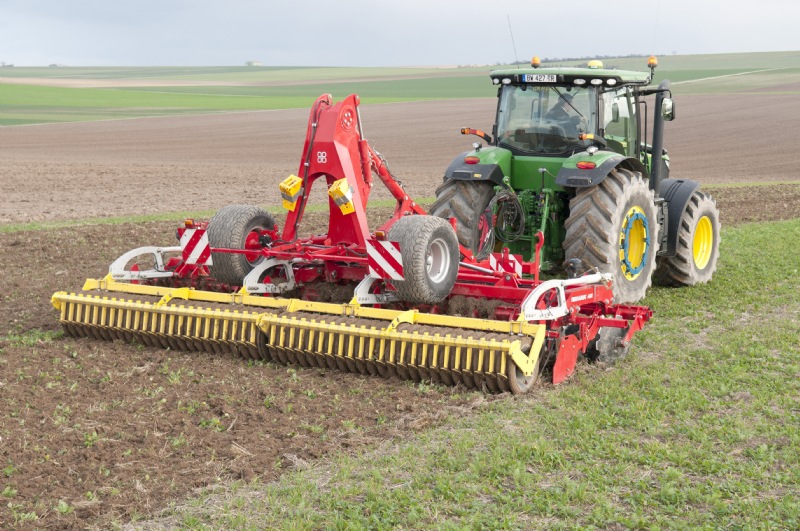

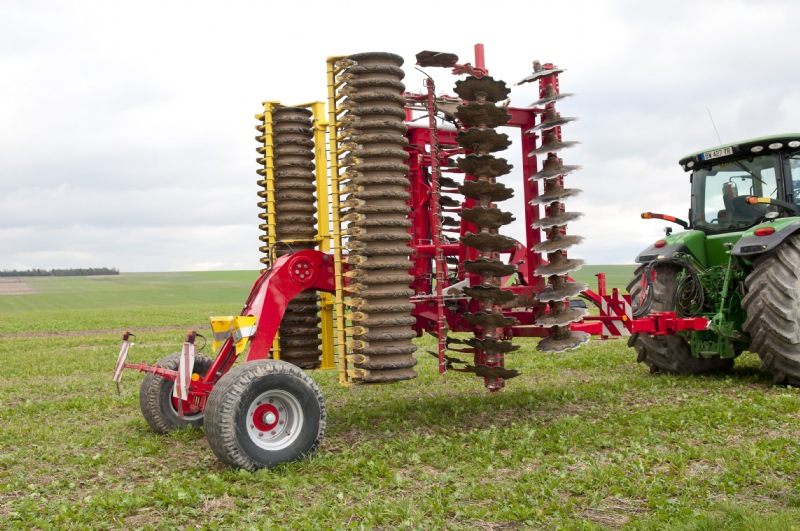

TERRADISC 6001T 6.0m 180HP Trailed (3pt)
