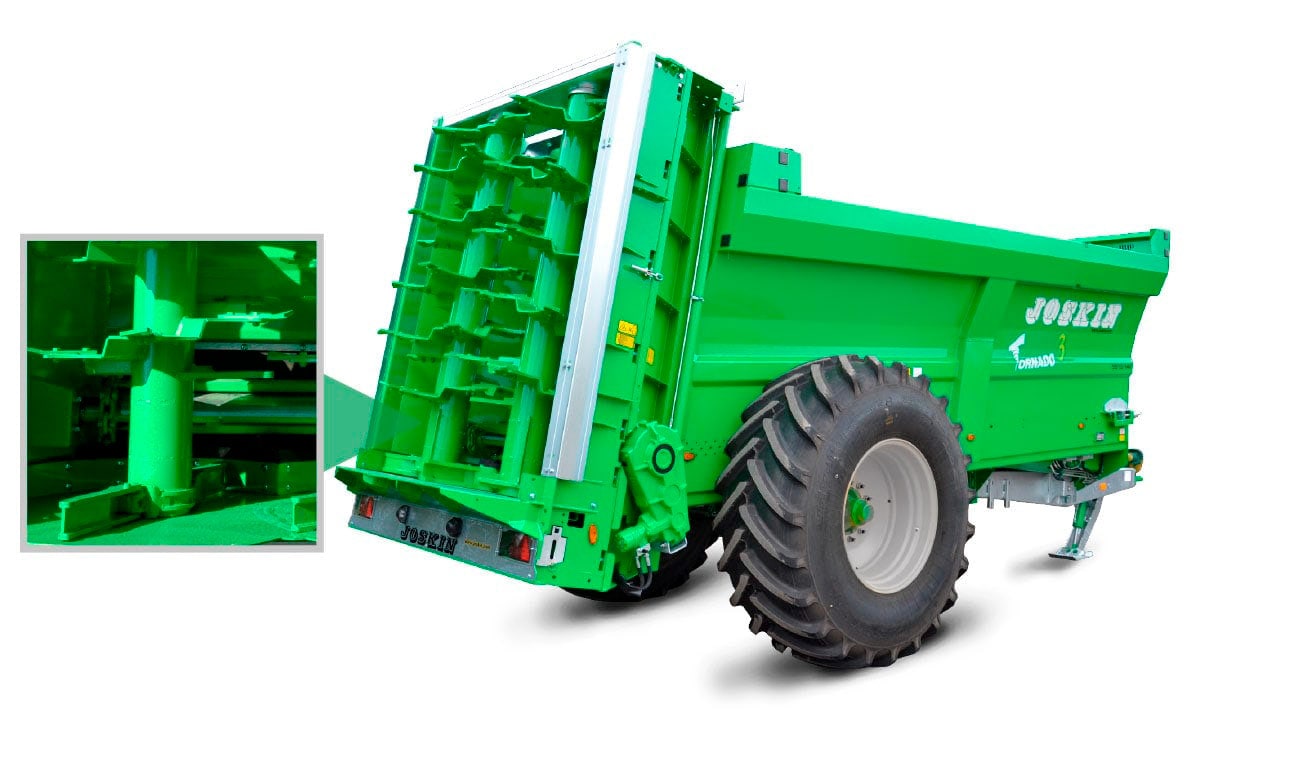

Tornado3

The Tornado3 is also a muck spreader with lowered narrow body in HLE steel and wheels with a large diameter as well. Its high capacities and sturdiness are ensured by its body made up of successive folds and by a side reinforcing post.

This body with a height of, 1,130 mm to 1,570 mm (offers load volumes from 8,6 to 25,8 m³ according to the model. The beaters with folded spirals spread evenly on a width from 7 to 16 m per row, depending on the product.

12-15 Tonne

Download Brochure Enquire Now

Product Enquiry: Tornado3

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

Transmission

The transmission is protected by elastomer couplings between the boxes and the beaters (1) that will absorb shocks and therefore increase the lifespan of these boxes.

High tensile steel

The body in high tensile steel makes it possible to reach – thanks to successive folds of the plate – a high resistance while avoiding the lateral reinforcement and reducing the empty weight of the machine.

Moving floor

Moving floor with shipping chain with grade 80 (the highest grade in traction chains currently existing); The moving floor is fitted with side and central tensioners that are easily accessible.

Hitching cross-suspension

Whatever the type of ground, the fitting of parabolic leaves offers a high lateral stability and driving comfort, without distortion of the traction line.

Specifications

Drawbar suspension Cross-suspension with parabolic leaves
Moving floor 2 Ø 16 mm shipping chains
Vertical beaters Ø 1,010 mm, according to the model 1,770 mm to 2,220 mm high, with 4 or 7 folded spirals
Teeth Removable in HB 400 high tensile steel (80 x 12 mm)
Discs Ø 1,100 mm with retractable blades – option discs with 3 blades
Drive 1.000 rpm
Beater rotation speed 445 rpm
