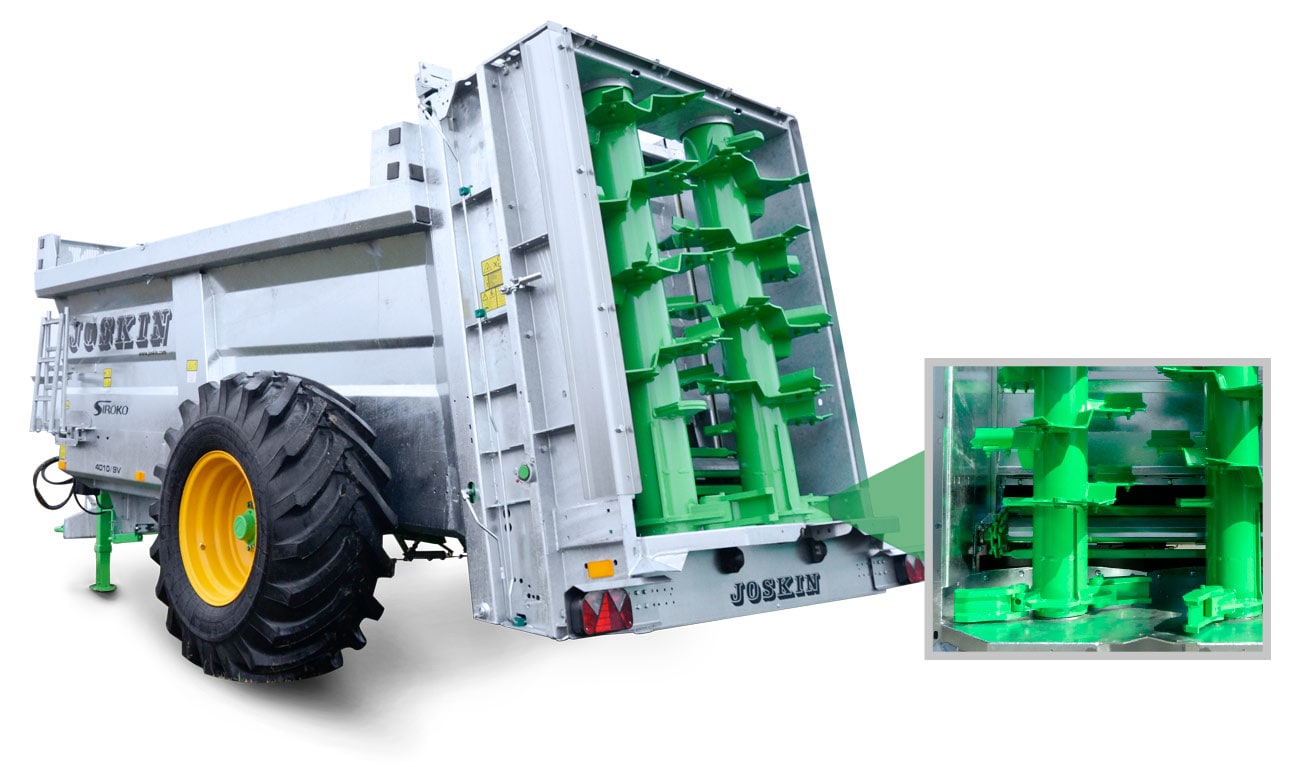

Siroko

The JOSKIN Siroko spreader with lowered galvanized body is remarkable in many ways: its innovative design makes maintenance much easier. The cross-suspension hitching and the large dimensions of the wheels provide it with an excellent stability both when working and on the road. Its body in HLE 550 high tensile steel is made up of successive foldings and has a rectangular upper strip. The side walls of 850 mm, 1,090 mm, or 1,340 mm high offer a load capacity from 5 m³ to 14.17 m³. According to the product, the two beaters with folded spirals split and spread from 7 to 10 m away per row.

9-13 Tonne

Download Brochure Enquire Now

Product Enquiry: Siroko

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

Transmission

The transmission is protected by elastic couplings between the boxes (1).

High tensile steel

The body in high tensile steel makes it possible to reach – thanks to successive folds of the plate – a high resistance while avoiding the lateral reinforcement and reducing the empty weight of the machine.

Moving floor

Moving floor with shipping chain with grade 80 (the highest grade in traction chains currently existing); The moving floor is fitted with side and central tensioners that are easily accessible.

Hitching cross-suspension

Whatever the type of ground, the fitting of parabolic leaves offers a high lateral stability and driving comfort, without distortion of the traction line.

Galvanization

The SIROKO is fully galvanized, from the drawbar to the beater frame, to guarantee the longevity of the material.

Specifications

Drawbar suspension Cross-suspension with parabolic leaves
Moving floor 2 Ø 14 mm shipping chains
Vertical beaters Ø 785 mm, 1,750 mm or 2,000 mm high, with 4 or 5 folded spirals
Teeth Removable in HARDOX 450 steel (80 x 6 mm)
Discs Ø 829 mm with retractable blades
Drive 1.000 rpm
Beater rotation speed 423 rpm



NB: the technical specifications of the Siroko 4008/8V can differ from the rest of the range.
