Ferti-Cap

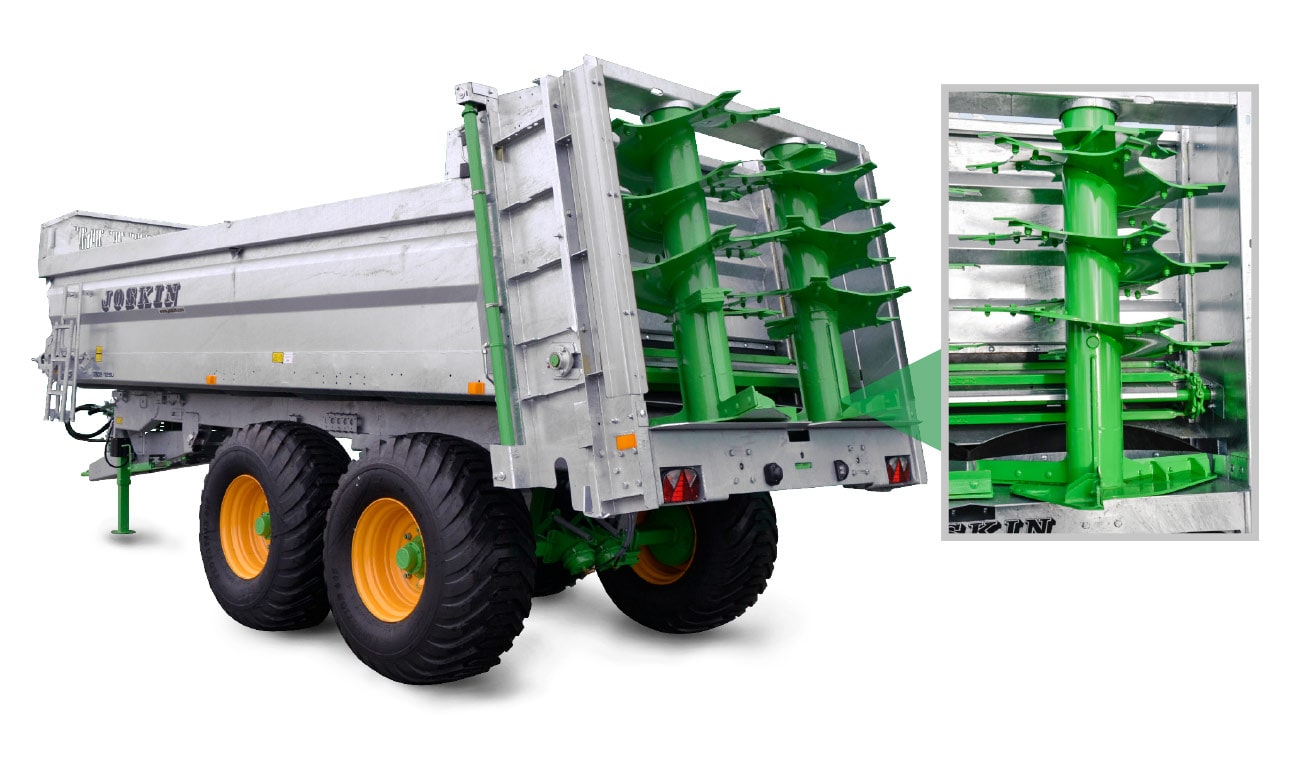

The new JOSKIN Ferti-CAP with wide monocoque body in HLE 550 steel of 810 mm high spreads on a wide surface. With its capacities from 6.91 to 13.97 m³, it is very multi-functional in spreading and transport of various materials. According to the product, the large diameter of the vertical beaters with folded spirals allow to spread on a width from 8 to 12 m per row.

The beaters can easily be removed to convert the Ferti-CAP into a harvest trailer (silage and others).



** Indent Order Only – Enquires Welcome **

8-12 Tonne

Download Brochure Enquire Now

Product Enquiry: Ferti-Cap

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

High tensile steel

The body in high tensile steel makes it possible to reach – thanks to successive folds of the plate – a high resistance while avoiding the lateral reinforcement and reducing the empty weight of the machine.

Moving floor

Moving floor with shipping chain with grade 80 (the highest grade in traction chains currently existing); The moving floor is fitted with side and central tensioners that are easily accessible.

Hitching cross-suspension

Whatever the type of ground, the fitting of parabolic leaves offers a high lateral stability and driving comfort, without distortion of the traction line.

Galvanization

The Ferti-CAP is fully galvanized, from the drawbar to the beater frame, to guarantee the longevity of the material.

Specifications

Drawbar suspension Cross-suspension with parabolic leaves
Moving floor 2 Ø 14 mm shipping chains
Vertical beaters Ø 1,080 mm, 1,500 mm high, with 3 spirals
Teeth Removable, in HARDOX 450 steel (80 x 6 mm)
Discs Ø 1,140 mm with 3 blades
Drive 1.000 rpm
Beater rotation speed 423 rpm
