Air 8 & 16

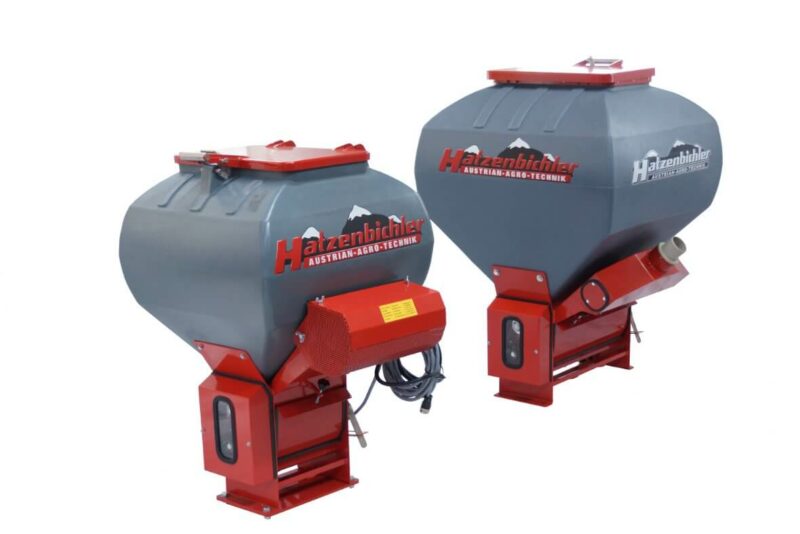

AIR 8 Working width up to 6.50m, 8 outlets, 150 Litre hopper STD, Twin 12Volt electric fans, Agitator, Flexible cable shaft drive to variable speed gearbox, mounting base plate, Two seed dosage rollers (one for grass, one for small seed) 8 x Seed distributors with 25m of hose, Application rates from 800gm/Ha up to 400Kg/Ha (depends on seed and working width)

AIR 16 Working width up to 12m,16 outlets, 400 Litre hopper, sensor drive wheel with computer controller, Hydraulic fan drive, Agitator, Mounting plate, Two seed dosage rollers (one for grass, one for small seed),16 x seed distributors with 50m of hose, Application rates from 800gm/Ha up to 400 Kg/Ha (depends on seed and working width)

Enquire Now

Product Enquiry: Air 8 & 16

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • 0.8 Kg up to 400 Kg per Hectare possible (Depends on seed and width)
  • Other Seed Dosage rollers available as extra for other application rates
  • Two Seed Dosage rollers (Standard) Driven by Cog Belts/Pulleys
  • Twin 12 Volt Electric Blower Fans (Standard on AIR 8)
  • Seed Agitator fitted Standard
  • Hydraulic Blower Fan on AIR 16 Standard (Optional on AIR 8)
  • 25m of Air Hose Standard with AIR 8, 50m with Air 16
  • Flexible Direct Drive Cable to Vari -Speed Gearbox standard on AIR 8

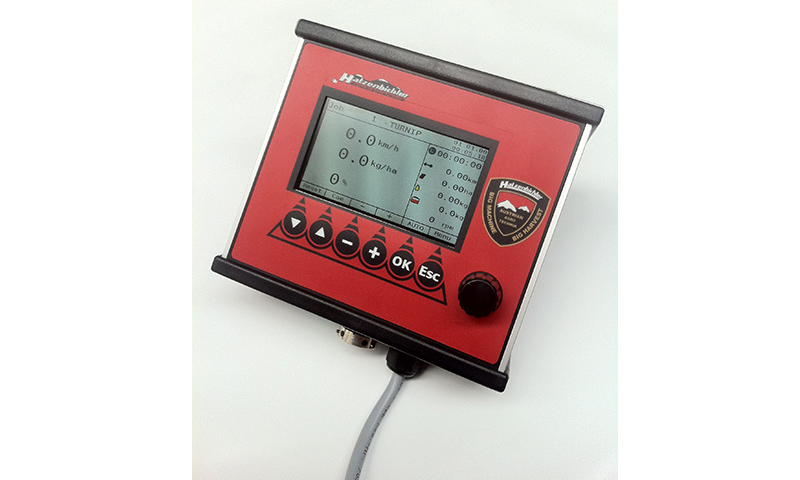

  • Electric Sensor Drive wheel with full programmable seed rate
  • Controller (Standard on AIR 16) (Option on AIR 8)

Specifications

MODEL No. SEEDER OUTLETS HOPPER CAPACITY FAN DRIVE TYPE WORKING WIDTH RANGE
Air 8 – Direct 8 150Ltr Electric 3-6m
Air 8 – Direct 8 400Ltr Electric 3-6m
Air 8 – Direct 8 400Ltr Hydraulic 3-6m
Air 8 – Electric 8 400Ltr Hydraulic 3-6m
Air 16 – Electric 16 400Ltr Hydraulic 4-12m
