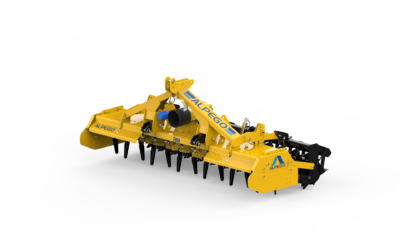

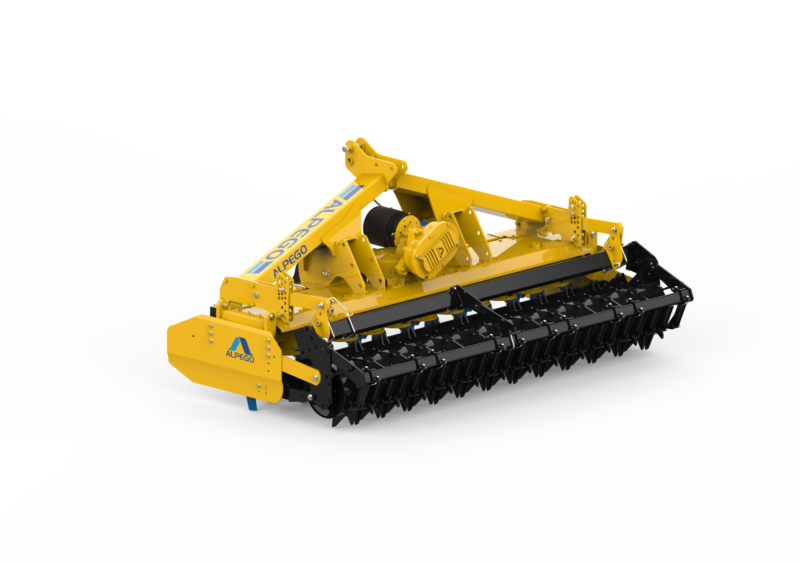

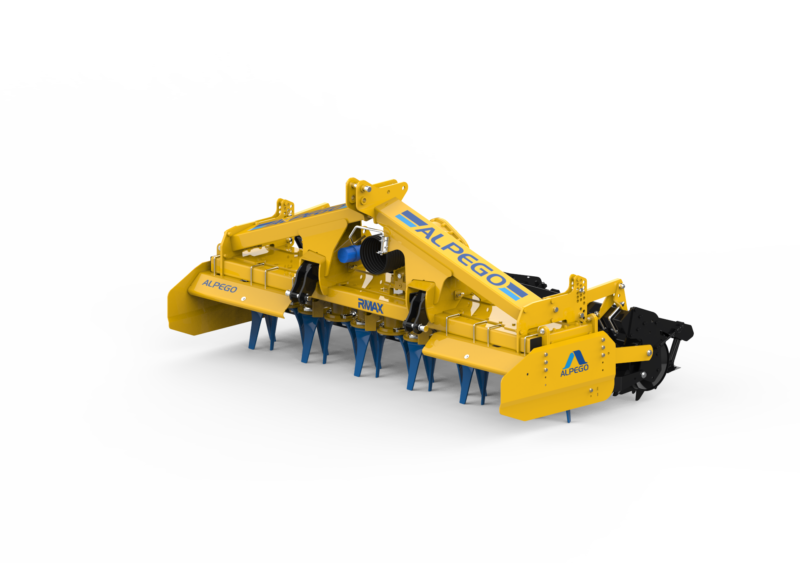

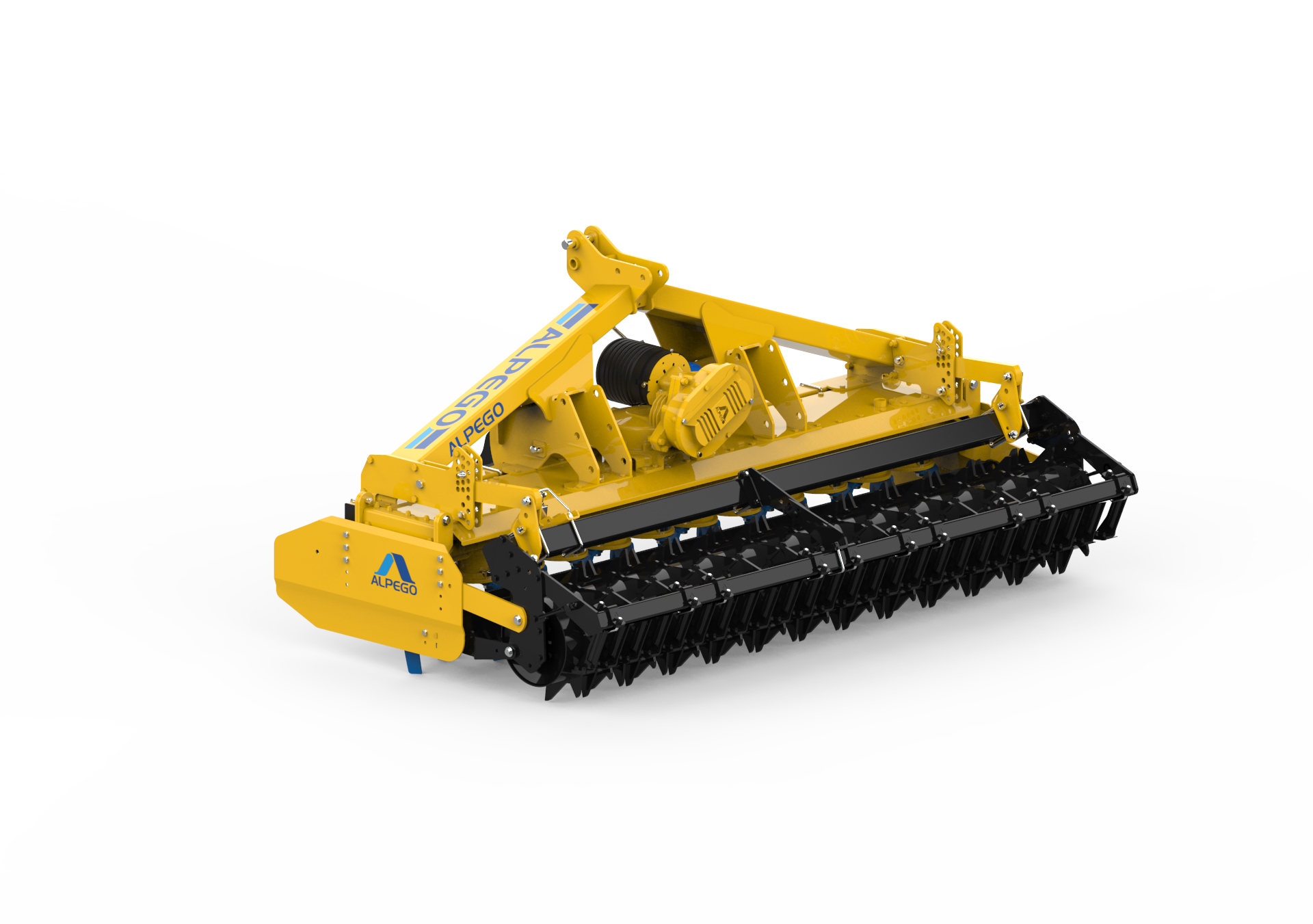

RmaX

The ROTODENT RmaX is a rigid power harrow unique in its category. Its strong point is the TWIN-FORCE “maX” mechanical peculiarity and its heavy-duty structure.

120-320HP

Download Brochure Enquire Now

Product Enquiry: RmaX

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • Extra Heavy Duty – Can work directly into the ground
  • QUICK CHANGE BLADES FITTED – STANDARD
  • EXTRA Strong chassis Made from Fine Grain Swedish Steel
  • Round Blade supports – for less drag and lower power
  • “TWIN FORCE” Modular Rotors with TIMKEN TAPER roller bearings
  • Double Labyrinth Rotor seal protection 2 YEAR WARRANTY!
  • Extra Deep Clearance Rotor Shafts for excellent crop stubble handling
  • Rear Levelling Bar with Automatic Level Control and screw adjusters
  • Floating lower Link mounting and Spring Loaded side Shields
  • P.T.O Drive shaft with Auto Cut out Cam-Clutch
  • Standard Rotor speed 343 RPM other speeds/ Gears available on request
  • Special angled Blades with sweep back for less power
  • Phased Blade timing for lower power and smoother running
  • Floating roller mounted on parallelogram with fast depth adjustment

OPTIONS

  • Cage or Packer Rollers available

Specifications

MODEL WORKING WIDTH P.T.O No. BLADES No. ROTORS
RmaX 300 3.0m 1000 12+12 12
RmaX 350 3.5m 1000 14+14 14
